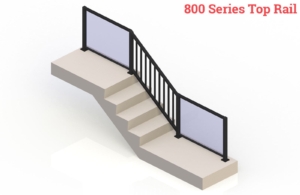

eGlass Picket™ 800 Series Drawings Deck Mount
eGlass Picket™ with 800 Series Top Rail System: eGlass Picket™ Mount: Deck Top Rail: 800 Series Top Rail Stair Transition Hardware: Hinged Rail Connecting Block for Stairs Infill: Aluminum Pickets View Full PDF for 36″ System View Full PDF for 42″ System
Read MoreeGlass Picket™ System Drawings w/ Saddle Bracket
eGlass Picket™ Deck Mount with Post Cap Saddle Bracket Use these Post Cap Saddle Brackets on top of intermediate posts to give continuous support to our 800 Series Top Rail during elevation changes, like stairs and ramps. System: eGlass Picket™ Mount: Deck Top Rail: 800 Series Top Rail Connecting Hardware: Post Cap Saddle Bracket Stair Transition Hardware: Hinged Rail Connecting Block for Stairs Infill: Aluminum…
Read MoreeGlass Picket™ Assembly Demonstration

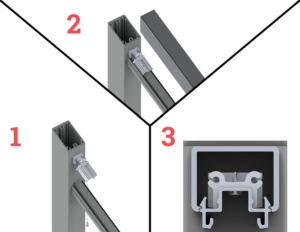

To Install an 800 Series Top Rail Stair Rail: Attach Top Rail Infill to Hinged Rail Connecting Block for Stairs. Snap 800 Series Top Rail to Top Rail Infill. Cut away view of completed assembly.
Read MoreBlack eGlass Picket™ System – Stair Transition

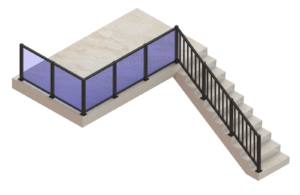

Stair Transition with Pickets This eGlass Picket™ stair transition features aluminum pickets instead of an angled glass panel on the stair section of the railing. The pickets allow for a simpler and less expensive option than installing custom cut angled glass panels. System: eGlass Picket™ Mount: Deck Connecting Hardware: Rail Connecting Block Stair Transition Hardware: Hinged Rail Connecting Block for Stairs…
Read MoreBlack Glass Railing – eGlass Picket
Pickets provide an easier-to-install alternative to angled glass panels for stair transitions. Our eGlass Picket™ system offers the choice of two top rails that blend seamlessly with our eGlass Element™ and eGlass Solid™ systems. A black finish provides a traditional look that also projects stability and elegance.
